What is a Transformer, and How Do They Work?

Transformers are indispensable components of our extensive electrical infrastructure, which powers our industries, homes, and technologies. They ensure electricity is efficiently and safely managed across the power grid.

Transformers reduce high voltages from power lines, making the power suitable for residential use. They also regulate the electricity supply to devices that require stable and precise power inputs, such as medical equipment and data centers.

This article will dive into the fundamentals of transformers, explaining how they work and why they are indispensable in our electrical infrastructure. We will explore their operational mechanisms, highlight their vital role in energy management, and examine the specific industrial applications offered by Giga Energy.

‍

Understanding Transformers

Transformers are key to the transmission and distribution of electricity across networks that can span cities, states, or even entire nations. They use electromagnetic induction — a process where a change in magnetic field generates an electric current — to adjust voltage levels. Depending on what the electrical grid needs, transformers can either increase (step up) or decrease (step down) these levels.

Function and Importance

Transformers adjust AC circuit voltage levels through electromagnetic induction, a vital process for applications that require different voltage levels. For instance, high voltages are utilized in power transmission lines to minimize energy loss over great distances. Conversely, lower voltages are essential at consumption points to ensure safety and maintain the compatibility of electrical equipment.

Transformers are vital for adjusting voltages and distributing electricity efficiently across wide areas with minimal losses. By stepping up the voltage for long-distance transmission, transformers allow electricity to travel greater distances with less energy lost as heat. This high-voltage transmission reduces the need for thick cables and numerous substations, cutting down on infrastructure complexity and the associated costs.

Additionally, by stepping down voltages to safer, more usable levels at service destinations, they enhance the overall safety of the electrical system. This dual capability of adjusting and stabilizing voltage supports the grid’s functionality and ensures that it operates economically and safely, making transformers indispensable in the modern world.

Anatomy of a Transformer

Transformers are sophisticated yet elegantly simple devices. They have three primary components: the magnetic core, windings, and insulation.

Magnetic Core

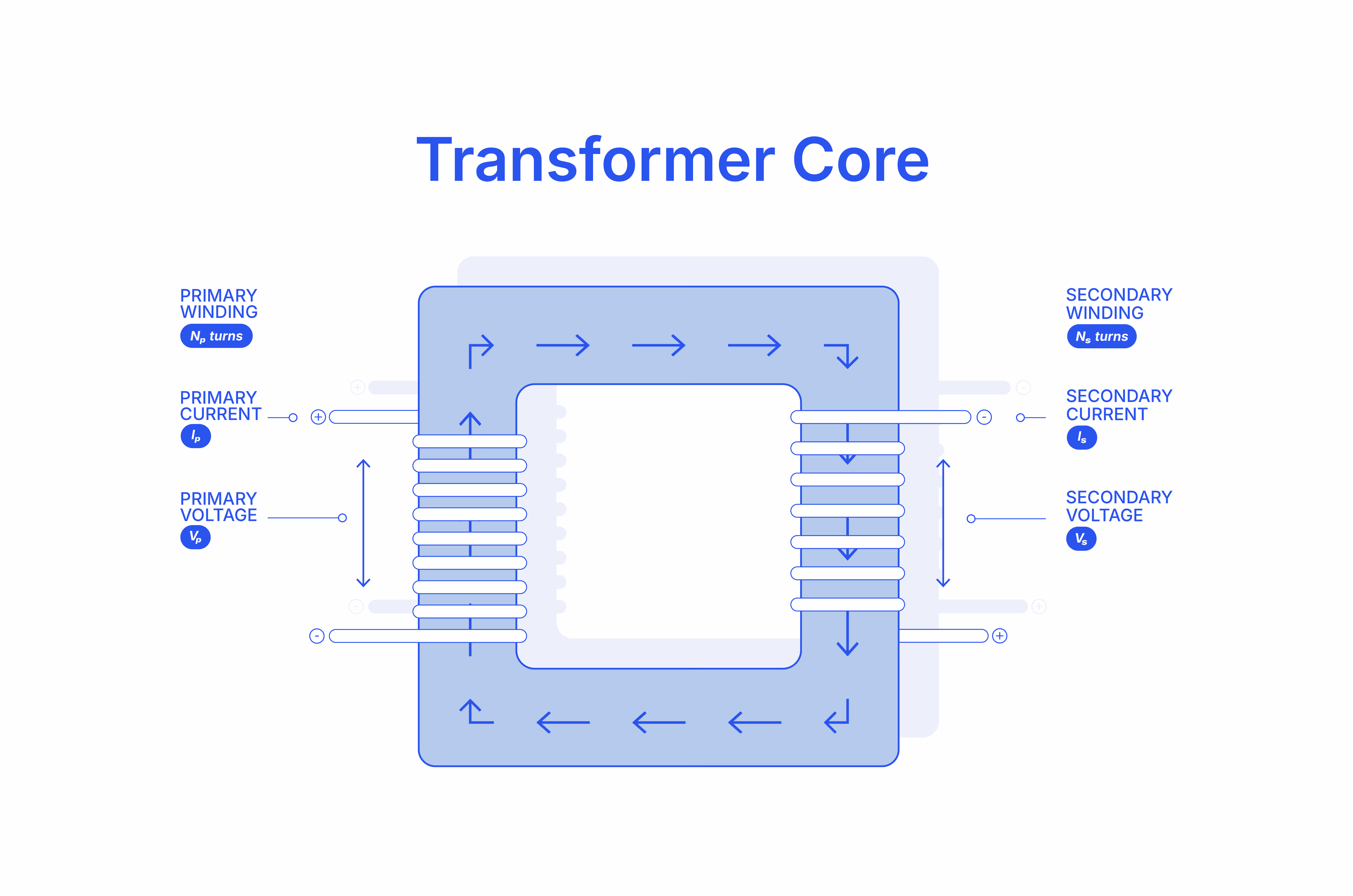

The heart of every transformer is its magnetic core, typically made from high-permeability silicon steel. This material choice is crucial because it effectively minimizes energy losses during operation. The core’s fundamental role is to provide a path for magnetic flux, acting as the bridge facilitating energy transfer between the transformer’s primary and secondary windings.

Windings

Windings are wrapped around the transformer core and divided into primary and secondary windings.

• Primary windings: The primary windings receive power from the source, and as the alternating current flows through them, it creates a dynamic magnetic field. The design of these windings, particularly the number of turns of wire, is carefully calculated based on the input voltage and the desired efficiency of the magnetic flux generation.
• Secondary windings: Positioned within the magnetic field established by the primary windings, the secondary windings generate the transformer’s output. The design of the secondary windings (the number of turns) determines the output voltage of the transformer.

Insulation

Electrical shorts between the different windings and the core in transformers is prevented by insulation. It is typically made from materials like paper, rubber, or synthetic resins that withstand high temperatures and electrical stresses.

Fundamental Principles of Operation

Transformers operate on a few core principles that enable the transfer of electrical energy between circuits without direct electrical connection. This is similar to modern wireless charging for smartphones and other personal devices.

Electromagnetic Induction

Electromagnetic induction, a phenomenon first discovered by Michael Faraday, is the mechanism that powers transformers. An alternating current flowing through the transformer’s primary winding, generates a fluctuating magnetic field surrounding it. The changing magnetic field induces a magnetic flux throughout the transformer’s core, which is pivotal for energy transfer.

Faraday’s Law

Faraday’s Law of Electromagnetic Induction further explains this phenomenon, stating that any change in the magnetic environment of a coil will induce a voltage in the coil. The strength of this induced voltage is directly proportional to the rate of change in magnetic flux. This principle is essential for efficiently understanding how transformers can increase or decrease voltage levels.

Mutual Induction

Mutual induction occurs when the magnetic field generated by the primary winding induces a voltage in the secondary winding, which is positioned within the same magnetic field but not electrically connected. This interaction allows the transformer to transfer energy from one circuit to another, effectively changing the voltage level according to the needs of the power distribution system.

Practical Application

In practice, the transformer utilizes the varying magnetic field from its primary winding to induce a corresponding magnetic field in its secondary winding. The final output voltage is determined by the number of turns in each winding.

‍

For instance, if the secondary winding has fewer turns than the primary, the transformer steps down the voltage, suitable for safe use in residential and commercial settings. Conversely, more turns in the secondary winding than the primary will increase the voltage, ideal for long-distance power transmission.

‍

The design of the transformer, including the choice of core material (usually a ferromagnetic material like iron) and the precise arrangement of the windings, significantly impacts its efficiency. A well-designed transformer minimizes energy losses while maximizing the voltage transformation capability, ensuring that the electrical power is delivered where needed with minimal loss.

How Transformers Work

Transformers operate on fundamental electromagnetic principles to manage and modify electrical energy. Let’s break down the process into its essential steps to understand how power is transferred from the primary to the secondary windings, effectively changing voltage levels according to need.

1. Power input: The operation begins when an alternating current flows into the primary winding of the transformer, creating a magnetic field around it.
2. Magnetic flux generation: As the alternating current continues to flow through the primary winding, it strengthens the magnetic field, generating a magnetic field that permeates the transformer's core. This magnetic flux is pivotal as it is the medium through which energy is transferred within the transformer.
3. Flux linkage: The magnetic field generated in the primary winding extends to the secondary winding. This crucial process links the primary and secondary windings via the core's magnetic flux without direct electrical contact. Flux linkage enables power transmission while isolating the input from the output.
4. Induction of voltage: According to Faraday’s Law of Electromagnetic Induction, any change in the magnetic environment of a coil (like the secondary winding of a transformer) will induce a voltage in the coil. As the magnetic flux through the secondary winding changes with the alternating nature of the input current, a voltage is induced across the secondary winding.
5. Power output: The voltage induced in the secondary winding causes an alternating current to flow in the secondary circuit. This current is at a new voltage level, transformed up or down depending on the design of the transformer (specifically the ratio of turns in the primary to the secondary winding). The transformed voltage is then fed into the electrical system or network it is meant to serve, completing the energy transfer cycle.

Key Specifications and Parameters

Selecting the right transformer requires knowledge of key specifications that match the transformer to its specific uses. For example, a transformer for a large industrial plant must handle higher power ratings compared to one used in a residential area. This ensures that the transformer meets the operational demands of its environment.

Power Rating

The power rating of a transformer is a fundamental specification that indicates its capacity to handle electrical power without exceeding its thermal limits. It is typically measured in kilovolt-amperes (kVA) and is crucial for determining the amount of electrical power the transformer can safely manage.

Power ratings vary widely, from a few kVA for smaller devices and applications to several megavolt-amperes (MVA) for large industrial plants and power transmission.

Voltage Ratings

Voltage ratings of a transformer, both primary and secondary, indicate the operational voltage levels the transformer is designed to handle. These ratings are vital as they define the transformer’s capacity to either step up or step down voltage according to the needs of the power distribution system.

The voltage ratio, a key metric derived from these ratings, is governed by the turns ratio of the windings and directly affects how voltage is modified across the transformer. The Voltage Transformation Ratio is calculated by dividing the number of turns in the secondary winding (N_s) by the number of turns in the primary winding (N_p).

This ratio is mathematically expressed as,

‍

V_s / V_p = N_s / N_p

‍

V_s and V_p represent the voltages in the secondary and primary windings, respectively. This ratio is crucial for designing transformers to meet specific voltage requirements, ensuring they operate efficiently within their intended electrical infrastructure.

Winding Material

The choice between copper and aluminum for winding materials in transformers affects cost, weight, and performance. Copper windings, being highly conductive, are more efficient and have a lower resistance, which translates to lower energy losses. Aluminum, while less conductive, is lighter and costs less, but it may require larger cross-sectional areas to carry the same current as copper.

Insulation Class

A transformer's insulation class indicates the maximum temperature rise that the transformer's insulation can endure without degrading. This classification is critical for ensuring the longevity and safety of the transformer in various operating environments.

Insulation classes are typically designated by letters (Class A, B, F, H), and each has a specific maximum operating temperature, dictating the environments and operational conditions the transformer can withstand.

Efficiency

A transformer’s efficiency quantifies its capacity to minimize losses when converting input power into output power. Higher efficiency reduces operational costs by saving energy and minimizing heat production. Many modern transformers achieve efficiencies of 98% or more under full load conditions. This high performance is often due to advances like improved core materials and better winding techniques, which enhance how the transformer handles electricity.

Impedance

Impedance in a transformer indicates the transformer’s resistance to changes in current and its ability to limit short-circuit currents. Expressed as percentage impedance, it affects voltage regulation and the transformer’s response to fault conditions. Choosing the right impedance balance is important to ensure both the stability and safety of the electrical system.

Types of Transformers

Transformers are categorized based on several key criteria: voltage conversion, core material, winding arrangement, construction, application, etc. Each type is designed to fulfill distinct electrical requirements and operational conditions, ensuring efficiency and safety across various settings.

Based on Construction and Installation

Transformers vary significantly in their construction and installation methods, each tailored to meet the needs of different environments and applications.

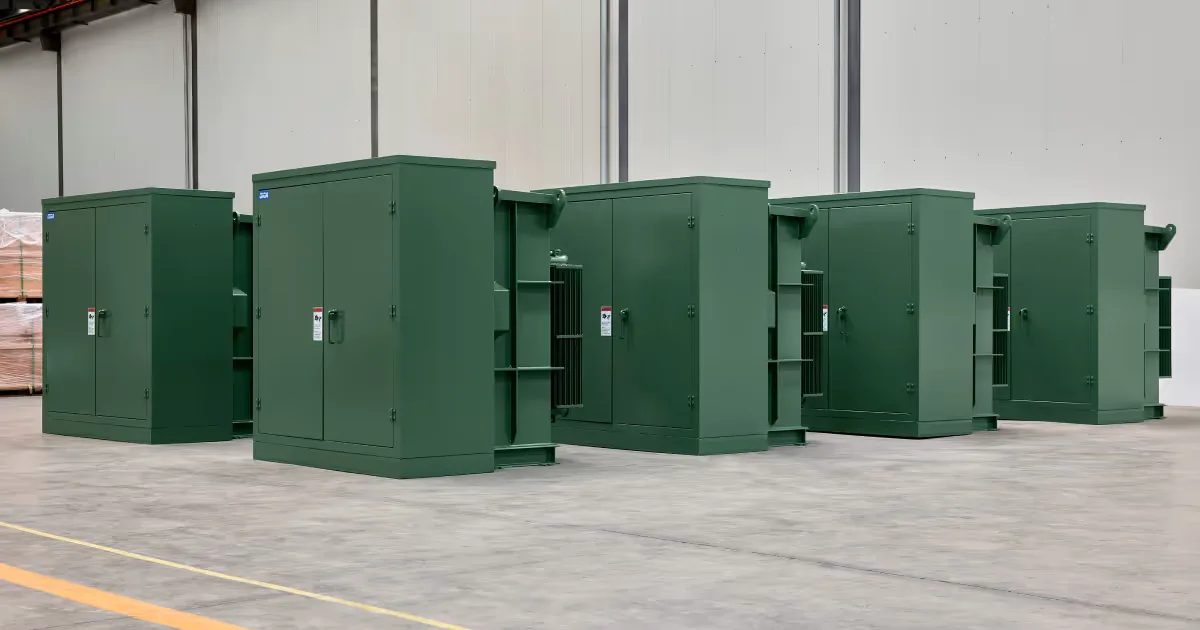

• Padmount transformers: Installed on ground level and secured within locked steel cabinets on concrete pads, padmount transformers are designed to be used in accessible areas, such as residential neighborhoods and commercial settings. Their tamper-resistant enclosures make them ideal where safety and space are priorities.
• Polemount transformers: Commonly mounted on utility poles and primarily used to distribute electricity across rural or suburban areas. They are less accessible, which helps protect them from tampering and environmental threats such as floods.
• Substation transformers: As key components of electrical grids, substation transformers are installed within substations. They handle high voltages and are crucial for transitioning electrical energy from high-capacity transmission systems to local distribution networks.
• Dry-type transformers: Dry-type transformers lack liquid cooling systems. They are air-cooled and typically used indoors or in environments where minimizing fire and environmental risks is necessary. They are particularly suitable for locations such as underground substations or buildings.

Based on Voltage Level

The categorization of transformers based on voltage involves classifying them into high, medium, or low-voltage units.

• High-voltage transformers: Essential for the initial stages of power transmission, these transformers step up the voltage generated by power stations for long-distance transmission, minimizing energy loss over extensive electrical lines.
• Medium-voltage transformers: These transformers, also called distribution or service transformers, are commonly used in industrial and commercial applications. They step down high voltages from transmission lines to levels suitable for factory machinery and commercial installations.
• Low-voltage transformers: Often found in residential areas and small businesses, low-voltage transformers reduce the medium voltage supplied by distribution lines to levels safe for home appliances and small-scale commercial devices.

Based on Insulation and Cooling

• Dry-type transformers: These units use air for cooling, eliminating leak risks. They are ideal for indoor use, such as in schools or hospitals. They typically feature high-temperature insulation materials like resin or varnish that coat the windings, providing thermal and electrical insulation.
• Liquid-filled transformers: These are known for excellent cooling efficiency. They use oil or other fluids to manage heat, helping them handle higher loads and extend their lifespan. However, they require careful installation and maintenance due to potential environmental hazards from leaks. The oil enhances the transformer's dielectric strength, aiding in voltage and load management.

Based on Voltage Conversion

Transformers are also categorized based on their ability to increase or decrease voltage levels, which is crucial for various stages of power distribution.

• Step-up transformers: These increase the voltage from a lower voltage to a higher voltage. Typically used in power generation areas, step-up transformers prepare electricity for long-distance transmission, reducing energy loss over extensive power lines.
• Step-down transformers: Step-down transformers reduce high voltage to a lower low voltage, to make it safe for households and businesses to consume. They are crucial in the final stages of power distribution, ensuring that electricity is delivered at safe, usable levels.

Based on Transformer Core

The core material in a transformer plays a key role in its efficiency and suitability for different applications.

• Iron core transformers: Utilize iron cores to enhance the transformer’s efficiency by facilitating the magnetic flux. They are widely used in general power distribution due to their excellent magnetic properties and cost-effectiveness.
• Ferrite core transformers: These transformers use a ceramic ferrite core, which is effective at higher frequencies. They are typically used in high-frequency applications like switch-mode power supplies, where minimal core loss at high frequencies is desired.
• Air core transformers: Lacking an iron or ferrite core, these transformers use just the air, eliminating core losses. They are suited for high-frequency applications like radio frequency transmission and impedance matching.
• Toroidal core transformers: Toroidal transformers, characterized by their donut-shaped core, reduce magnetic leakage and lower noise, making them ideal for audio applications and other sensitive electronic devices.

Based on Winding Material

The choice of winding material — aluminum or copper — affects a transformer’s performance, cost, and durability.

• Aluminum windings: Cost-effective and lighter than copper, aluminum windings are commonly used in transformers where cost is a more significant factor than efficiency. To achieve similar conductivity, they require larger cross-sectional areas than copper.
• Copper windings: Offering superior conductivity and efficiency, copper windings are preferred in applications where performance and durability are paramount. Though more expensive, copper’s efficiency can lead to lower lifecycle costs due to better energy management and reduced heat generation.

Based on Winding Arrangement

Transformers can be categorized by their winding arrangements, which affect their functionality and application.

• Auto transformers: These transformers have a single winding that acts as primary and secondary. This design allows for a compact, cost-effective solution at the expense of electrical isolation. Electrical isolation is important because it prevents electrical faults in one part of the system from affecting other parts, enhancing safety. Auto transformers are typically used in applications where electrical isolation is not a critical requirement and where space and cost savings are prioritized.
• Dual-winding transformers: Featuring separate windings for the primary and secondary circuits, dual-winding transformers provide better voltage regulation and electrical isolation. This arrangement is essential in applications requiring high safety and precision in voltage control, making them ideal for critical industrial, commercial, and residential installations where isolation from the utility grid is necessary.

Based on Application

Different transformers are designed to suit specific power distribution and generation segments, addressing various voltage and load requirements.

• Power transformers: Employed primarily in power generation and high-voltage transmission networks, these transformers are designed to handle very high voltages and large loads over long distances. They are crucial for efficient electricity transmission from power plants to substations before distribution to end-users.
• Distribution transformers: They step down the voltage from transmission levels to levels suitable for consumer use within local distribution networks. Commonly seen mounted on poles or placed in ground-level cabinets in residential areas, they ensure electricity is delivered safely and efficiently to end consumers.

Other Types

There are specialized transformers designed for particular functions within electrical systems, enhancing safety and adaptability.

• Isolation transformer: Designed to provide electrical isolation between the primary and secondary circuits, isolation transformers protect against electrical shocks and eliminate ground loops in sensitive equipment environments. They are widely used in medical facilities, laboratories, and any setting where equipment sensitivity to ground interference is a concern.
• Variable transformer: Known for their ability to adjust the output voltage continuously, variable transformers are invaluable in applications requiring precise voltage control. They allow users to vary the output by changing the ratio of turns between the primary and secondary, making them ideal for testing and development environments where varying power conditions are needed.

Advantages and Challenges

While transformers offer significant benefits, they also present challenges that need careful management.

Advantages of Using Transformers

Transformers bring several key benefits to electrical systems:

• Efficient power transmission: Transformers step up voltage levels to reduce current flow, enabling efficient long-distance transmission. This reduction in current decreases the I²R losses (where I is current and R is resistance), a major source of power loss in electrical systems.
• Versatility in voltage levels: Transformers can adjust voltage levels to suit the needs of various applications. They can step up the voltage to high levels for industrial use where massive machinery operates or step down to lower voltages suitable for everyday household appliances, ensuring versatility across different electrical requirements.
• Safety and isolation: By electrically isolating the primary circuit from the secondary circuit, transformers prevent the risks associated with direct electrical connections, enhancing operational safety in electrical networks.
• Energy conservation: High-efficiency transformers are designed to minimize losses during the power distribution process. This conserves energy and contributes to the overall sustainability of the power system by reducing unnecessary power wastage.

Challenges and Limitations

Despite their advantages, transformers also come with their own set of challenges:

• Cost and size: High-power transformers are often large and costly, making them difficult to install and maintain, especially in densely populated urban areas where space is at a premium and installation logistics can be complex.
• Maintenance requirements: Transformers require regular maintenance to ensure continuous and reliable operation, which can be resource-intensive and expensive, especially for larger transformers handling higher voltages and power loads.
• Environmental impact: There is an inherent environmental risk, particularly in the case of oil-filled transformers. Leaks from these transformers can contaminate soil and water, posing serious environmental threats. Hence, these transformers need stringent monitoring and maintenance protocols.
• Aging infrastructure: Many electrical grids rely on aging transformers installed decades ago, often falling short of current efficiency and safety standards. Requiring significant upgrades or replacements to meet modern requirements, they pose a substantial logistical and financial challenge.

Looking Ahead: Innovations in Transformer Technology

Smart transformers are emerging with integrated sensors that monitor real-time performance metrics like load and temperature, facilitating predictive maintenance and remote management.

Additionally, eco-friendly designs are gaining traction. They utilize biodegradable and less flammable cooling fluids to minimize environmental risks and boost fire safety. Innovations are also focusing on increasing the recyclability of transformer components and using materials that lower carbon emissions.

Meanwhile, solid-state transformers, still in the developmental stages, are poised to revolutionize smart grids with their superior efficiency and capability to manage variable loads from renewable energy sources.

Transformers: Shaping the Future With Giga Energy

Transformers are essential for modern electrical grids, managing voltage levels, ensuring safety, and meeting diverse application demands.

At Giga Energy, we lead the way by incorporating innovative technologies into our transformers to ensure they are efficient, reliable, and ready for the future. Our advanced engineering designs include amorphous steel cores, anti-vibration pads, and seismic apparatus, significantly enhancing efficiency and reducing energy losses.

Giga Energy is committed to delivering sustainable transformer solutions that adapt to changing power needs. Contact us for more details on how our products can benefit your infrastructure.

‍
