External vs. Internal Transformer Gauges: Which One is Right for Your Application?

Jeremiah Pendleton
X Min Read
3.13.2025
Transformers

I’ve been working with transformers for a while, and if there’s one thing I’ve learned, it’s that every little detail matters, including the gauges. Honestly, I didn’t think much about them at first. But after seeing what the wrong one can do, I learned fast.

It doesn’t matter if you are working with transformers, solar power setups, or charging stations, the gauge you pick can make a real difference. Use the wrong one, and you could end up dealing with overheating, voltage drops, or even long-term damage.

So, before you choose, let’s break down why it matters and how to get it right.

Understanding Transformer Gauges

From my time in the energy industry, I can tell you one thing: Transformer gauges are a big deal. But why? Well, transformers are the main element behind power distribution, and they ensure the safe distribution of electricity by adjusting voltage levels. If something goes wrong with them, you’re looking at expensive repairs, power outages, or even safety risks. That’s why keeping an eye on their internal health is so important. That’s where transformer gauges come in.

Key Functions of Transformer Gauges

These devices monitor things like temperature, pressure, and oil levels, giving you real-time updates on how your transformer is doing. They can be placed both internally and externally, and their main goal is to help catch small issues before they turn into massive (and costly) problems. Some of the main things they look at include:

Temperature

Transformers naturally generate heat during their operation, and if the temperature gets too high, it can cause damage or even lead to complete failure. Temperature gauges monitor the heat levels inside the transformer, helping ensure it doesn’t overheat. If the temperature gets too high, the gauge alerts operators so they can take action, like adjusting cooling systems or shutting the transformer down temporarily. This helps avoid serious issues and ensures the transformer stays in good working order for longer.

Liquid Level

Pad-mounted and substation transformers use oil (or other insulating fluids) to cool down the transformer and insulate electrical components. This oil helps dissipate heat and ensures the electrical parts don’t touch each other.  If the oil level drops too low, it could lead to overheating or even failure. Low oil levels can also signal a leak or other problem that needs fixing. Liquid level gauges monitor how much oil is inside the transformer to make sure it stays cool and insulated.

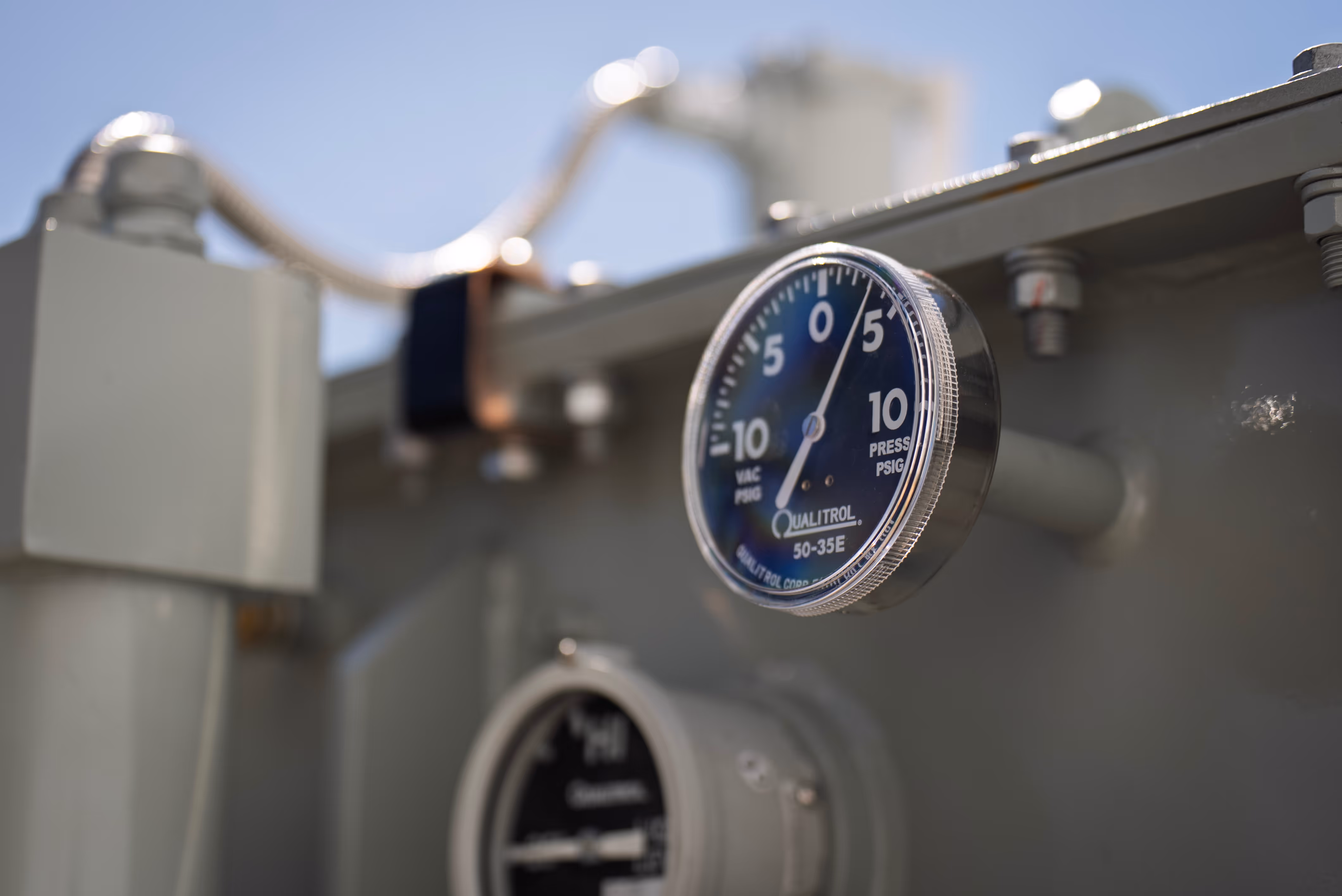

Pressure

The pressure inside the transformer can change due to a lot of different factors: temperature shifts, load conditions, or even technical faults. Pressure gauges keep track of these changes and alert operators if anything is unusual and has to be taken care of. For example, if the pressure gets too high, it could signal a fault that might lead to a rupture or other serious issues. A drop in pressure might indicate a leak. By monitoring pressure, operators can catch problems early and prevent more expensive (or even dangerous) repairs or failures.

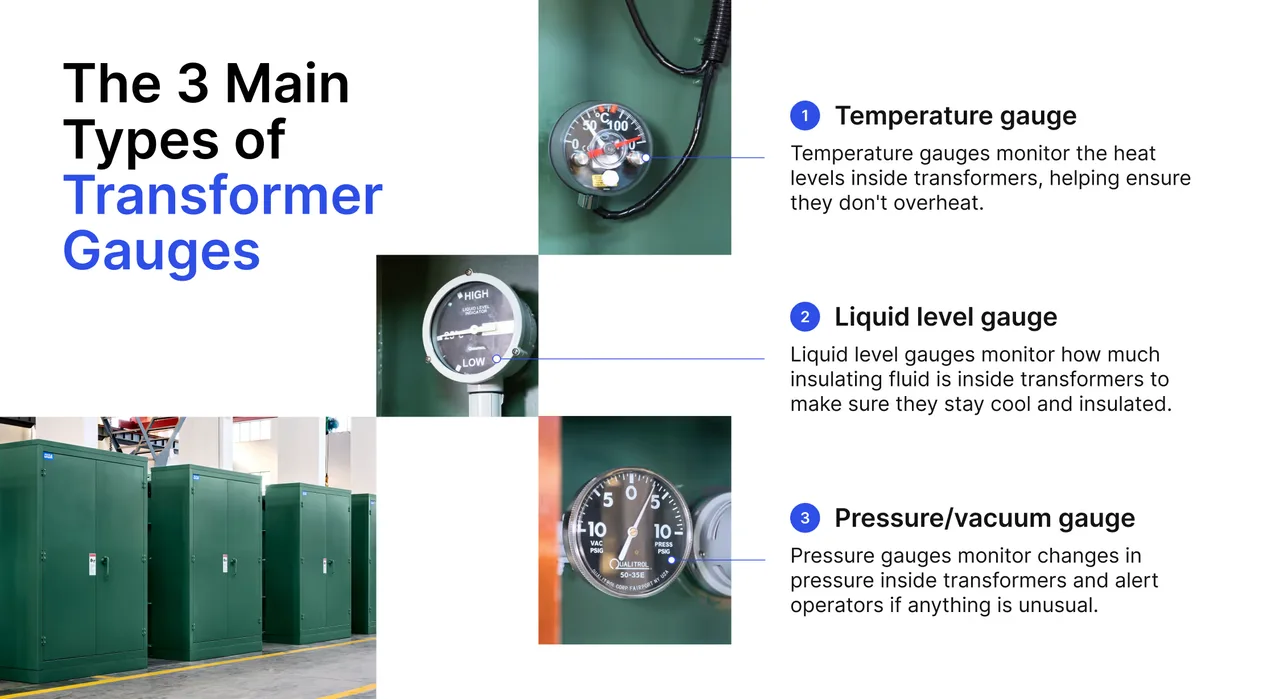

An overview of the 3 main types of transformer gauges.

Internal Transformer Gauges: Features and Considerations

Internal transformer gauges are installed inside the low-voltage side of the cabinet of pad-mounted transformers, typically in areas that are not easily accessible. These gauges are designed to monitor key parameters, such as temperature, pressure, and liquid levels, directly from within the transformer. This setup where sensors are placed inside rather than externally, comes with a lot of benefits, but also a fair amount of challenges. Let’s take a look at both of these.

Protection From External Elements

One of the main benefits of internal gauges is that, since they’re inside the transformers’ structure, they are protected from environmental factors like dust, moisture, and temperature changes.

This protection helps the gauges last longer and also reduces the need for frequent maintenance.

Accessibility and Visibility Challenges

While internal gauges are great for protection, they can be difficult to access. Because they’re inside a sealed compartment, technicians have to open the transformer to take readings. This means that inspections take more time and can be more complicated. In some cases, technicians might even have to shut down the system to access the gauges, which can cause service interruptions. This is a particular concern in industries where uptime is crucial, like power plants and data centers.

Additionally, opening the transformer to check the gauges can make diagnosing problems harder. Engineers may need to rely on indirect methods or perform physical checks, which increases the chance of mistakes. While newer technologies like remote monitoring sensors have helped reduce these challenges, traditional internal gauges still face limitations when it comes to accessibility.

Safety Considerations: Technician Exposure and Arc Flash Risks

One of the biggest concerns with internal gauges is the safety of the technicians working on them. To access these gauges, technicians need to be in close proximity to high-voltage areas, which raises the risk of arc flashes. An arc flash happens when a short circuit or fault creates a sudden release of energy, which can result in serious burns or even fatalities.

Over time, safety measures like personal protective equipment (PPE) and lockout/tagout (LOTO) procedures were developed to protect workers. PPE includes flame-resistant clothing, gloves, and face shields, while LOTO procedures ensure that power is properly shut off before maintenance begins. Although these measures are effective at preventing accidents, they do add extra time and complexity to maintenance tasks. Technicians need to follow these protocols carefully, which can make inspections slower, especially when transformers are critical for operations that can’t afford delays.

External Transformer Gauges: A Safer and Accessible Alternative

We’ve already talked about the downsides of internal transformer gauges, like how technicians have to shut down the unit, open it up, and step into potentially dangerous areas just to take a reading. So now let’s talk about a safer and more convenient alternative: external gauges.

Beyond being housed in a lockable, weatherproof box on the side of the transformer, these gauges have gotten a lot more durable over the years, offering better protection against harsh weather, dust, and moisture. More importantly, they make monitoring safer and more efficient, especially for pad-mounted transformers.

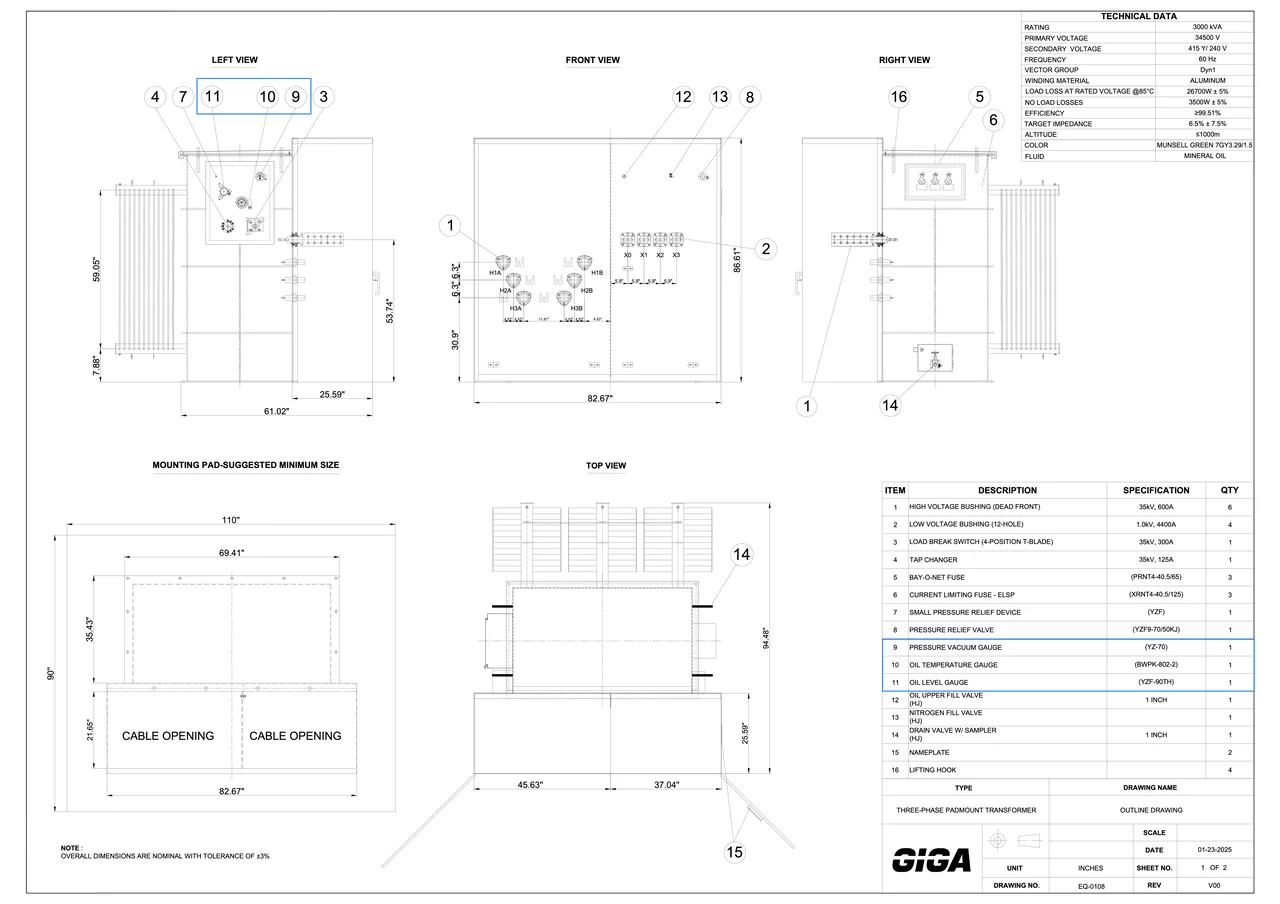

3-phase technical drawing with gauges highlighted.

A Safer Way to Monitor Transformers

One of the biggest perks of external gauges? Technicians don’t have to go near live electrical components. Since these gauges sit outside the transformer—completely separate from any electrical current—there’s no need to open the enclosure or enter hazardous areas just to take readings.

That’s a big deal because arc flashes and electrical shocks are serious risks when working with energized transformers. Arc flashes can hit temperatures over 35,000°F, causing burns, explosions, and even fatalities. By moving the monitoring equipment outside, external gauges help drastically cut down these risks while making the job easier for technicians.

Check Readings Without Shutting Anything Down

With internal gauges, taking a simple reading means shutting off power, opening the transformer, and manually checking each gauge. That’s time-consuming, adds to maintenance costs, and leaves room for human error.

External gauges make the whole process much faster and easier because they can be read from outside the transformer, without any downtime. Technicians can quickly check:

  • Temperature – Prevents overheating, which can lead to expensive damage.
  • Oil or Liquid Levels – Ensures proper insulation and cooling to keep the transformer running smoothly.
  • Pressure – Detects leaks or gas buildup that could indicate internal issues.

By making these readings quick and accessible, external gauges help maintenance teams catch small issues before they turn into major problems—saving time, money, and hassle.

Lower Maintenance Costs & Longer Transformer Lifespan

Regular monitoring is key to keeping transformers in top shape, and external gauges make it easier to stay on top of maintenance. Because they allow for more frequent checks, technicians can catch early warning signs like minor leaks or rising temperatures before they turn into expensive failures.

That means fewer emergency repairs, lower replacement costs, and less unexpected downtime. In the long run, keeping a transformer well-maintained extends its lifespan—helping utilities and businesses get the most out of their investment while avoiding unnecessary shutdowns.

Built-In Security to Prevent Tampering

Since external gauges are mounted outside a pad-mounted transformer, they need to be secure to prevent tampering, vandalism, or accidental damage. That’s why they’re housed in a lockable, weatherproof enclosure that keeps them protected from rain, snow, dust, and extreme temperatures.

Many models also have tamper-resistant features, ensuring that only authorized personnel can access the readings. This extra layer of security helps keep the gauges accurate and reliable while ensuring the transformer stays compliant with industry standards.

Choosing the Right Gauge for Your Transformer

Both internal and external gauges have their place, but when it comes to safety, convenience, and efficiency, external gauges are often the better choice.

Internal gauges are well-protected inside the transformer, but checking them can become a huge problem. Technicians have to shut down the unit, open it up, and work near high-voltage components, which adds time and risk to routine maintenance.

External gauges, on the other hand, let technicians monitor transformer health without opening the unit, reducing the risk of electrical exposure and eliminating unnecessary downtime. This makes them a safer and more practical option for most setups.

Are you looking for more information on internal and external gauges? Contact our team and get expert support for your project.
